Your benefits at a glance

Preservation and promotion of individual mobility:

  • Thanks to the 4 adjustable heights of the SafeFree® side rails, they can be used as a stand-up aid by small and large residents.
  • The optionally available SafeSense® bed-exit-system empowers independent self-mobilisation.
  • Comfort and prophylaxis position promote the well-being of immobile residents as well

Effective falls prevention is essential in geriatric care:

  • The safe sleeping height of 25 cm reduces the risk of serious fall consequences.
  • The head-side orientation position of the SafeFree® side rails, indicates the end of the bed and can additionally support safety during the night
  • The side rails can be adapted to the room concept or individual protection needs of the resident
  • The central or axle-mounted braking system protects against unintentional movement of the bed
  • The automatic night light of the SafeSense® system provides additional orientation at night

Ergonomics in the nursing routine to support the nursing staff:

  • Automatic nursing positions can be set at the touch of a button on the handset
  • The nursing functions can be locked and unlocked electronically and are thus protected against unintentional operation
  • The ergonomic nursing height of up to 80 cm enables back-friendly work
  • An underclearance of 15 cm allows the use of various care aids
  • The SafeFree® side rails ensure fast and free access to the resident

Homely design and functionality to make residents feel at home:

  • The double retraction of the Ergoframe® lying surface optimizes the space available in the seating area by 16 cm.
  • The backlighting of the handset facilitates operation even in the dark
  • Optional covers (fabric or imitation leather) for head and foot sections provide added comfort
  • A wide range of mattresses are available to meet different needs
  • The reading lamp provides additional comfort in the dark

Your benefit:

  • Earlier detection of falls than through routine checks
  • Night light provides orientation in the dark
  • Higher level of safety during tightly staffed night and weekend shifts
  • Nurse call with flexible timing
  • Stand-alone solution with separate power supply

Your benefit:

  • Real-time motion monitoring for pressure ulcer risk detection.
  • Bed exit monitoring with resident-specific settings
  • Nursing monitor app provides overview of all data
  • Optional moisture assistant for better protection against maceration and pressure ulcers
  • Stand-alone solution with separate power supply

Technical features

External dimensions, min./max. 104 x 208 cm
Lying surface 90 x 200 cm
Mattress size 87 – 90 x 200 cm
Double retraction 16 cm more space in the bed
Height adjustment 25 – 80 cm
Driveability At any bed height (highest flexibility due to driveability in all directions)
Underclearance approx. 15 cm
Brake System axlewise brakeable
Castors 50 mm double castor
(Anti-) Trendelenburg, pivoting 12°
Safe working load 225 kg
Max. resident weight 190 kg
Bed weight approx. 95 kg (in basic configuration)
Protection level IPX4
Protection class II

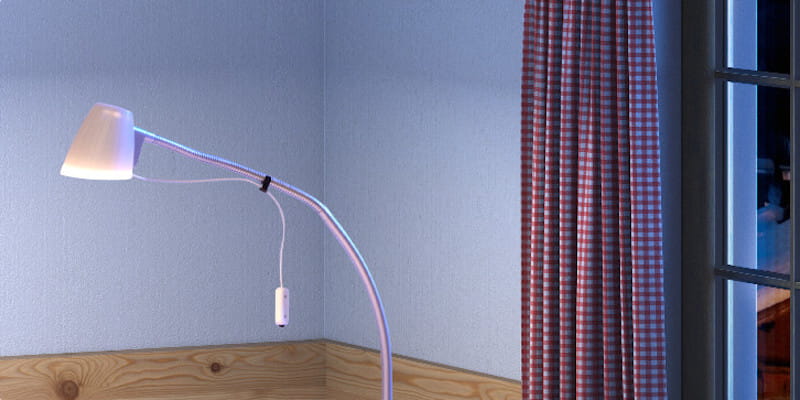

The optional LED reading lamp provides additional comfort

The carisma sc low nursing bed supports care at the highest level while improving the comfort and quality of life of your residents.
