Your benefits at a glance

The look of Tom 2 is characterized by clean lines, modern materials and fresh colours, making a pleasant and credible impression on child patients and their parents.

The transparent bed ends allow the child to constantly interact with their surroundings, with their parents and staff always being close by. The colourful motifs of the prints fully reflect the playful world of children.

The removable bed ends allow full access to the patient and come with an ICU version. The bed ends are magnetically locked and the panel is highly damage-resistant.

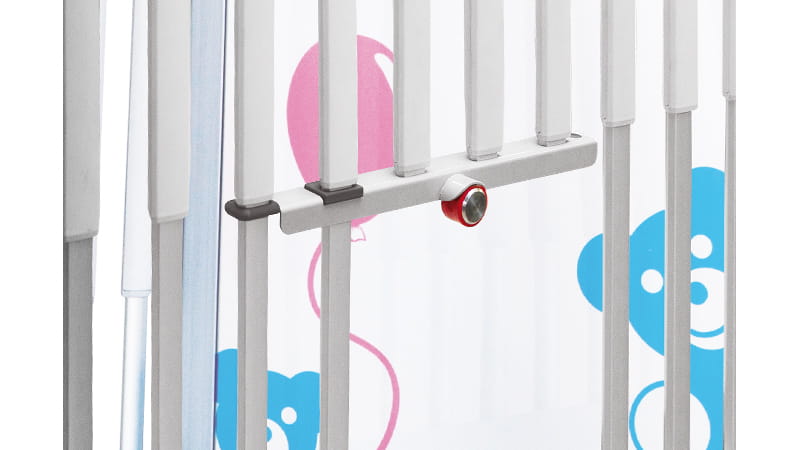

Telescopic siderails – The two ergonomic handrails make release of the siderails extremely safe.

Zero gap – Autoregression ensures a constant safety gap between the backrest and the head end of the bed. Ergonomic positioning principles are maintained.

The siderails height positions are adjustable so they can meet current needs.

The siderails are at the mattress level when adjusted to the lowest position and thus provide excellent access to the child patient. The staff's work with the patient is significantly easier and more ergonomic.

The central position of the siderail allows a better view from the bed when communicating with a visitor or the accompanying person, or when watching television.

The highest position of siderails provides maximal protection against falls.

Positioning of the Tom 2 children bed is fully electric. The bed’s height, backrest tilt and TR/ATR position can be adjusted by using the control panel. The GO button ensures safety locking of the bed to prevent accidental movement.

The unique range of the bed’s height adjustment extending to 25 cm (58 – 83 cm) ensures the patient’s safety on the bed and allows nursing procedures to be performed ergonomically.

The child patient can exit the bed comfortably at the lowest safe position (58 cm). The position is also convenient for communication between a visitor and the recumbent child.

When positioning the backrest the mattress platform slides out towards the head-end, so Tom 2 is the only bed on the market where a dangerous gap does not appear between the head and backrest.

Technical features

Outer dimensions

159.8 × 83.0 cm
Recommended mattress dimensions 142 × 70 cm
Maximum recommended mattress height 10 cm
Bed height 58 – 83 cm
Maximum siderail height above mattress platforms 80 cm
Autoregression of backrest 11 cm
Maximum backrest angle 40°
Trendelenburg/Reverse Trendelenburg position 15°/15°
Weight (depending on equipment) 120 kg
Clearance 13 cm
Safe working load 75 kg

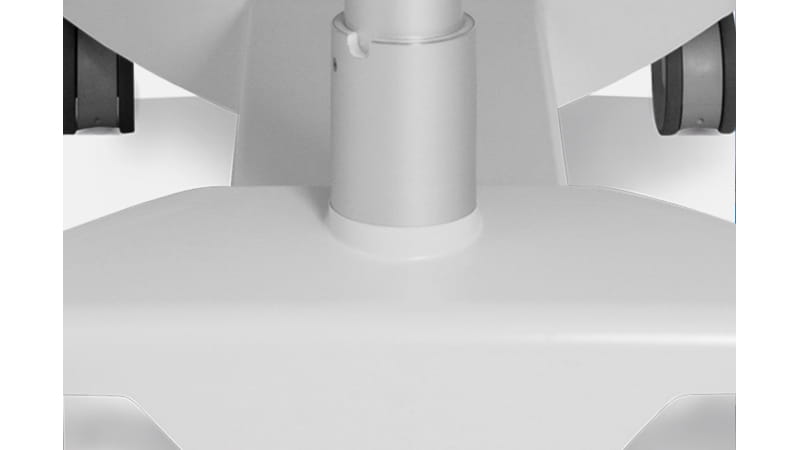

The column construction makes it possible to adjust the height of the entire bed, ensures perfect stability, provides unrestricted access to all parts of the bed and makes it excellent to clean.

  • Height adjustment motor
  • TR/ATR tilt adjustment motor
  • Backrest adjustment motor
  • Telescopic siderails, max height of 80 cm
  • Zero gap concept
  • Open bars on the siderails for practical use in pediatric care, e.g. for leading drains.

  • 2-section mattress platform
  • Autoregression of backrest

The column construction makes it possible to adjust the height of the entire bed, ensures perfect stability, provides unrestricted access to all parts of the bed and makes it excellent to clean.

  • 100 mm castors
  • Tente Motion castors 125 mm (O)
  • Tente Linea castors 125 mm (O)
  • Seperately and centrally braked
  • Transparent bed ends
  • Bear motif decoration
